Function
Interactive Interface LCD, Keypad
Measurement Range

Static Pressure: 0~300 mmHg

SBP:50~300mmHg, DBP:20~220mmHg;

Pulse Rate: 0~240bpm

Accuracy

Pressure:3mmHg

Pulse Rate:3% or ±3bpm whichever is greater

Reproducibility Pressure:≤3mmHg
Method of Measurement Oscillometry with linear deflation
Record Capacity

ABP-010 & ABP-020 :200 records;

ABP-011 & ABP-021 :400 records;

Physical Specification

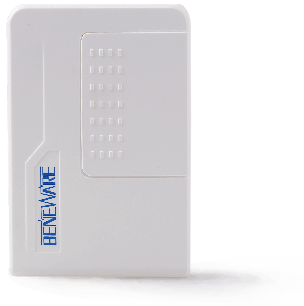

Monitor Dimension 113 x 75 x 26 mm
Monitor Weight 168g without battery
Monitor Ingress Protection IP22
Cuff Size

M5402BM: arm circumference 20~24cm

M5403BM: arm circumference 24~32cm

M5404BM: arm circumference 32~38cm

Collision Still works in case fall on hard surface from 50mm height in any axial direction
Operating Environment
Temperature 5°C ~ +40°C
Humidity 10% ~ 95% RH(no condensed)
Pressure 800hPa ~ 1060hPa
Storage and Transport Environment
Temperature -25°C ~ +70°C
Humidity ≤95% RH(no condensed)
Pressure 560hPa ~ 1060hPa
Battery
Type 2 AA(LR6) alkaline or high capacity Ni-HM batteries
Supply Voltage 2.4~3.2V
Measurement Capacity 200~400 measurements per battery
